Wizard Cooling Inc - Wizard Cooling - 1967-1969 Chevrolet Camaro/ Z28/ Firebird (LS SWAP OPTIONS) - 370-212LSBL

Additional Images

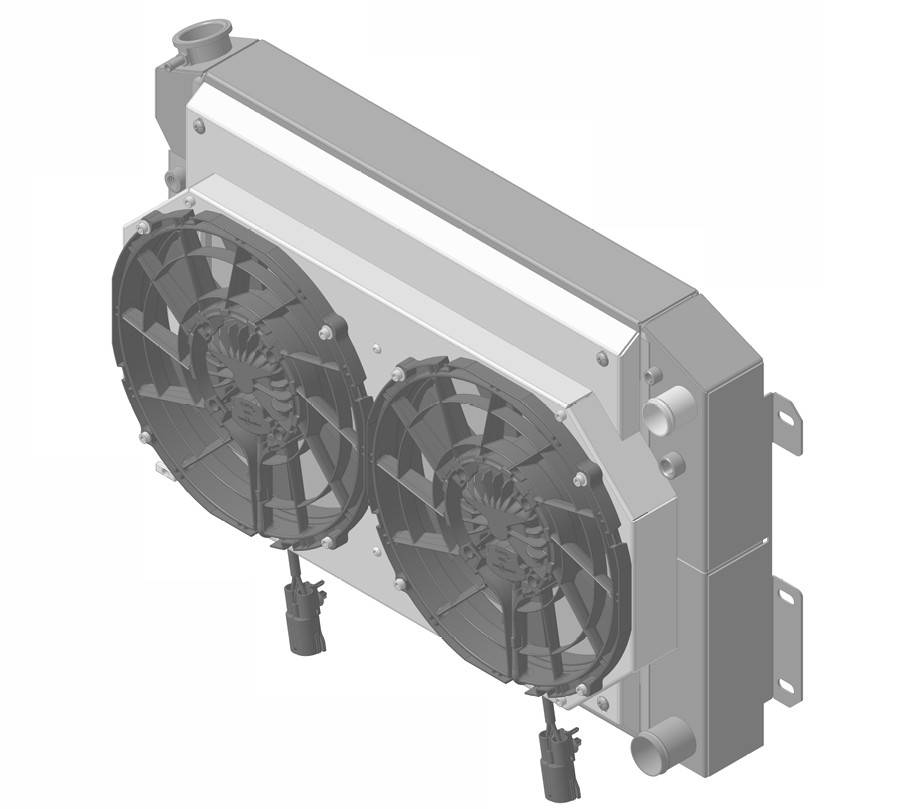

Wizard Cooling - 1967-1969 Chevrolet Camaro/ Z28/ Firebird (LS SWAP OPTIONS) - 370-212LSBL

LS Swap, Automatic Transmission, 2.75” Core, Shroud & Brushless Fan(s)

(0) Reviews: Write first review

SKU: 1-370-212LSBL

LS Swap, Automatic Transmission, 2.75” Core, Shroud & Brushless Fan(s),

Pricing: $2,099.00

Customize Your Item

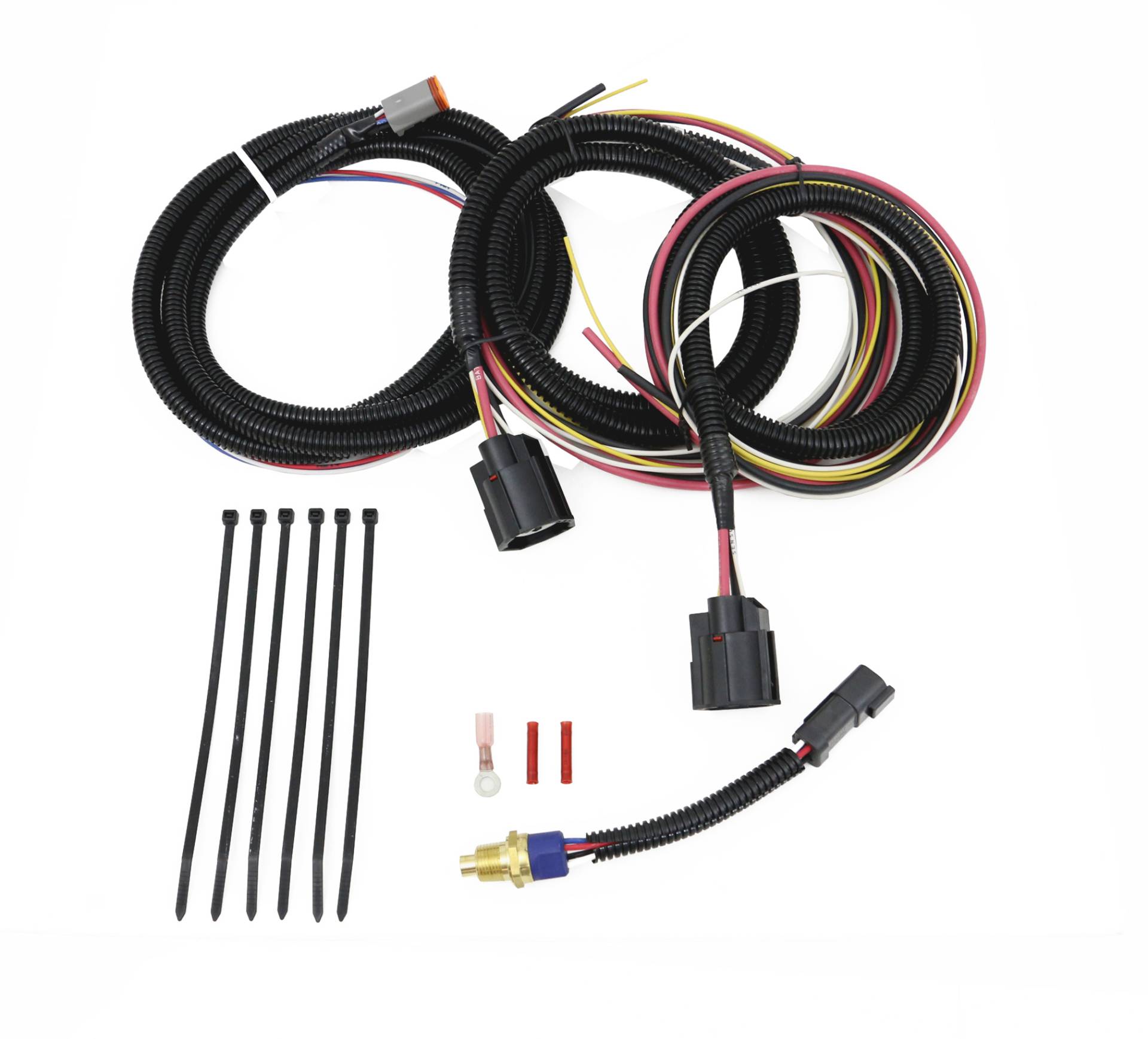

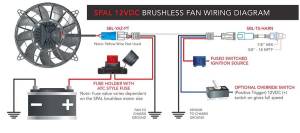

Dual Brushless Fan Wiring Kit:

- Please Select -

Finish Options

- Finish Options -

Qty:

FREE SHIPPING!!!( Web Orders Only)

Description
Drawings and Diagrams
Details
Shipping
Reviews

Description

1967-1969 Chevrolet (LS Swap) Camaro/ Z28/ Firebird (w/ BRUSHLESS Fans)

Drawings and Diagrams

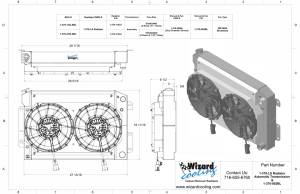

1-370-ls-radiator-at-1-370-002bl

View & Download Diagram

1-370-ls-radiator-at-1-370-002bl-iso

View & Download Diagram

Details

SKU: 1-370-212LSBL

Item #: 1-370-212LSBL

Brand: Wizard Cooling Inc
Year Make Model: 1967 Chevrolet Camaro
Year Make Model: 1967 Pontiac Firebird
Year Make Model: 1968 Chevrolet Camaro
Year Make Model: 1968 Pontiac Firebird
Year Make Model: 1969 Chevrolet Camaro
Year Make Model: 1969 Pontiac Firebird
Product Type: Radiator & Fan(s)
Engine: LS Swap
Engine: LS Swap (Supercharged)
Shroud YES/NO: Yes
Electric Fan YES/NO: Yes

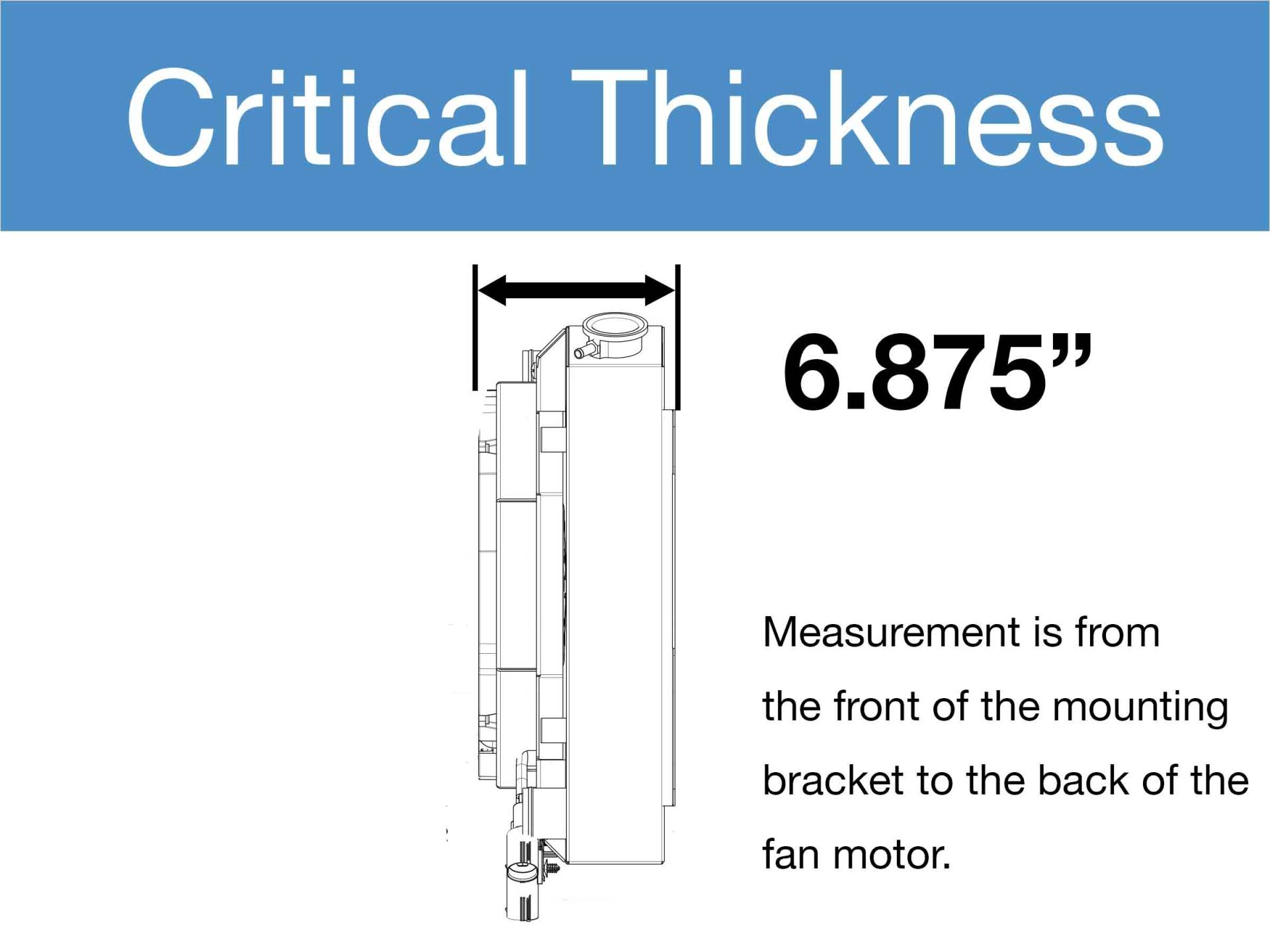

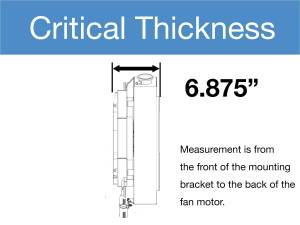

CRITICAL THICKNESS: 6.50 IN
CRITICAL THICKNESS: 6.75 IN
CRITICAL THICKNESS: 7.50 IN
CRITICAL THICKNESS: 7.75 IN
THICKNESS OF CORE: 2.25 in (Standard High Performance Core)
Core Thickness: 2.25 in (Standard High Performance Core)
TRANSMISSION OIL COOLER INCLUDED: Yes
Electric Fan Type: Brushless
Shroud: Yes
MOUNTED AC CONDENSER: No
OUTLET LOCATION: Passenger Side
INLET LOCATION: Passenger Side
Expansion Tank Included: No
OUTLET HEADER WIDTH: 3 IN
TUBE INSIDE DIAMETER: 1.25 IN
TANK MATERIAL: Aluminum
TOTAL CFM (ALL FANS): 3600
MOUNTING TYPE: Flange
TRANSMISSION OIL COOLER FITTING DIAMETER: 1/4 NPT
TRANSMISSION OIL COOLER PLATE QUANTITY: 5
TRANSMISSION OIL COOLER TYPE: Plate
INLET DIAMETER: 1.375 IN
CORE MATERIAL: Aluminum
CORE ROW QUANTITY: 2
CORE WIDTH: 23 IN
CUBIC INCHES OF CORE: 1147 CuIn
DOWN FLOW OR CROSS FLOW TYPE: Cross Flow
Electric Fans: Yes
ENGINE OIL COOLER INCLUDED: No
FAN DIAMETER: 12 IN
OUTLET HEADER LENGTH: 18.50 IN
INLET HEADER LENGTH: 18.50 IN
INLET HEADER WIDTH: 3 IN
NUMBER OF ELECTRIC FANS: 2
OUTLET DIAMETER: 1.625 IN
CORE HEIGHT: 18.50 IN
SHROUD TYPE: Shroud
PACKAGE: Radiator & Fan Package
Condition: New

Categories

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 49.0 lbs.
Package Dimensions: W35.0000” x H26.0000” x L11.0000”
Shipping: FREE SHIPPING!!!( Web Orders Only)
Shipping Note: This item ships in its own box.
