1940-1941 Chevrolet Street Rod Aluminum Radiator w/ ANGLED BRACKETS (Brushless Fan & Shroud) - 10506-208BL300

Chevy V8, Angled Brackets, Manual Transmission, 2.75” Core, Shroud & Brushless Fan(s)

(0) Reviews: Write first review

SKU: 1-10506-208BL300

Chevy V8, Angled Brackets, Manual Transmission, 2.75” Core, Shroud & Brushless Fan(s)

Pricing: $1,499.00

Customize Your Item

This radiator will come with a 300 watt fan unless otherwise indicated. Upgrading to the 500 watt fan will not change the overall thickness of your package.

Pick your WATTS (Fan Motor Size)

- Pick your WATTS (Fan Motor Size) -

* required

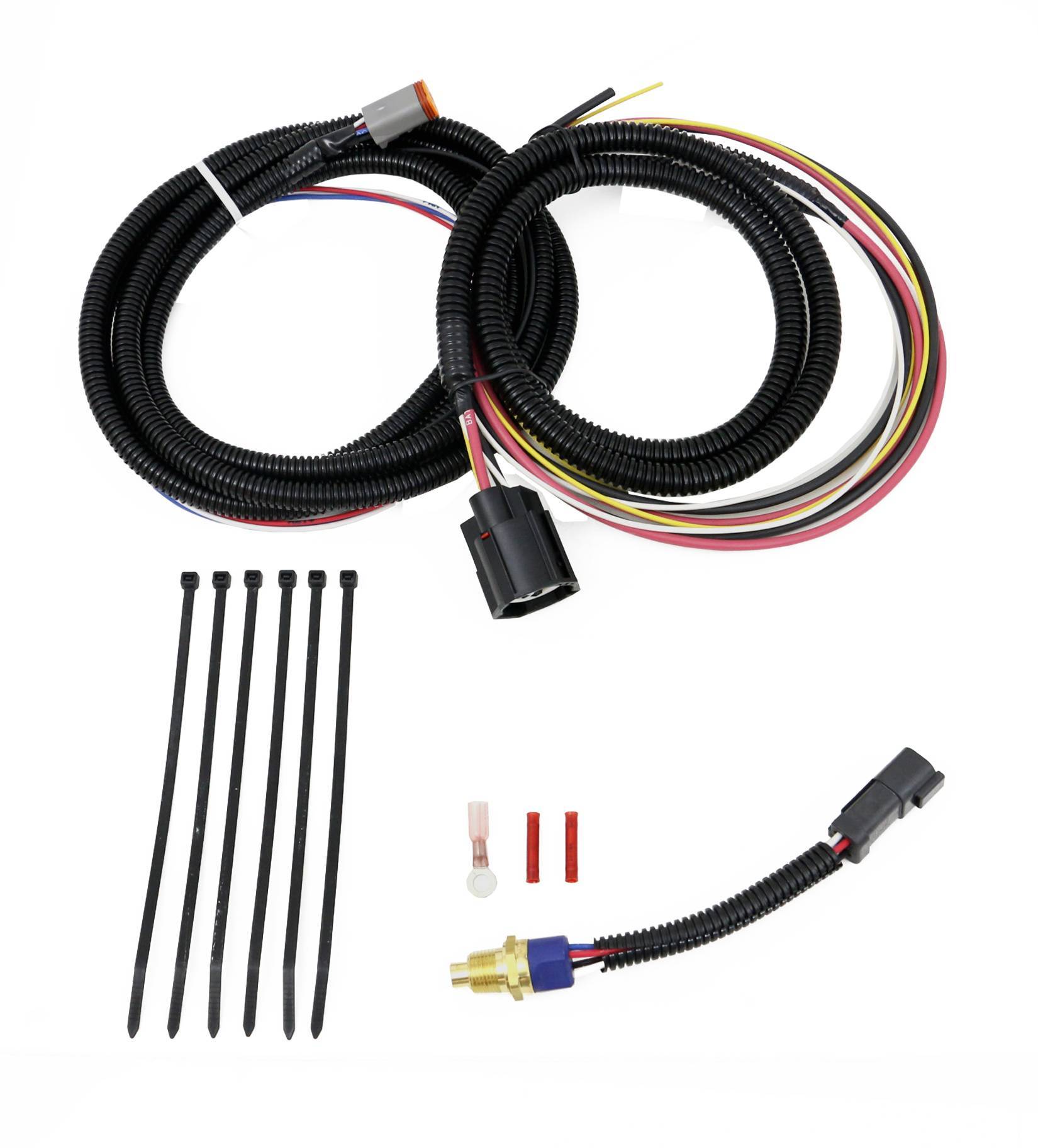

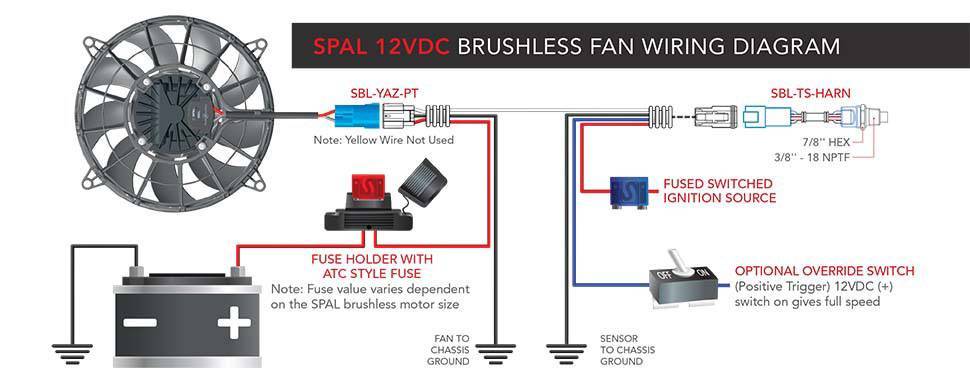

Single Brushless Fan Wiring Kit

- Please Select -

Finish Options

- Finish Options -

Qty:

FREE SHIPPING!!!( Web Orders Only)

Description
Drawings and Diagrams
Details
Shipping
Reviews

Description

1940-1941 Chevrolet Street Rod Aluminum Radiator With Single Brushless Fan Shroud
Electrical kit NOT included unless you add one to your cart

Drawings and Diagrams

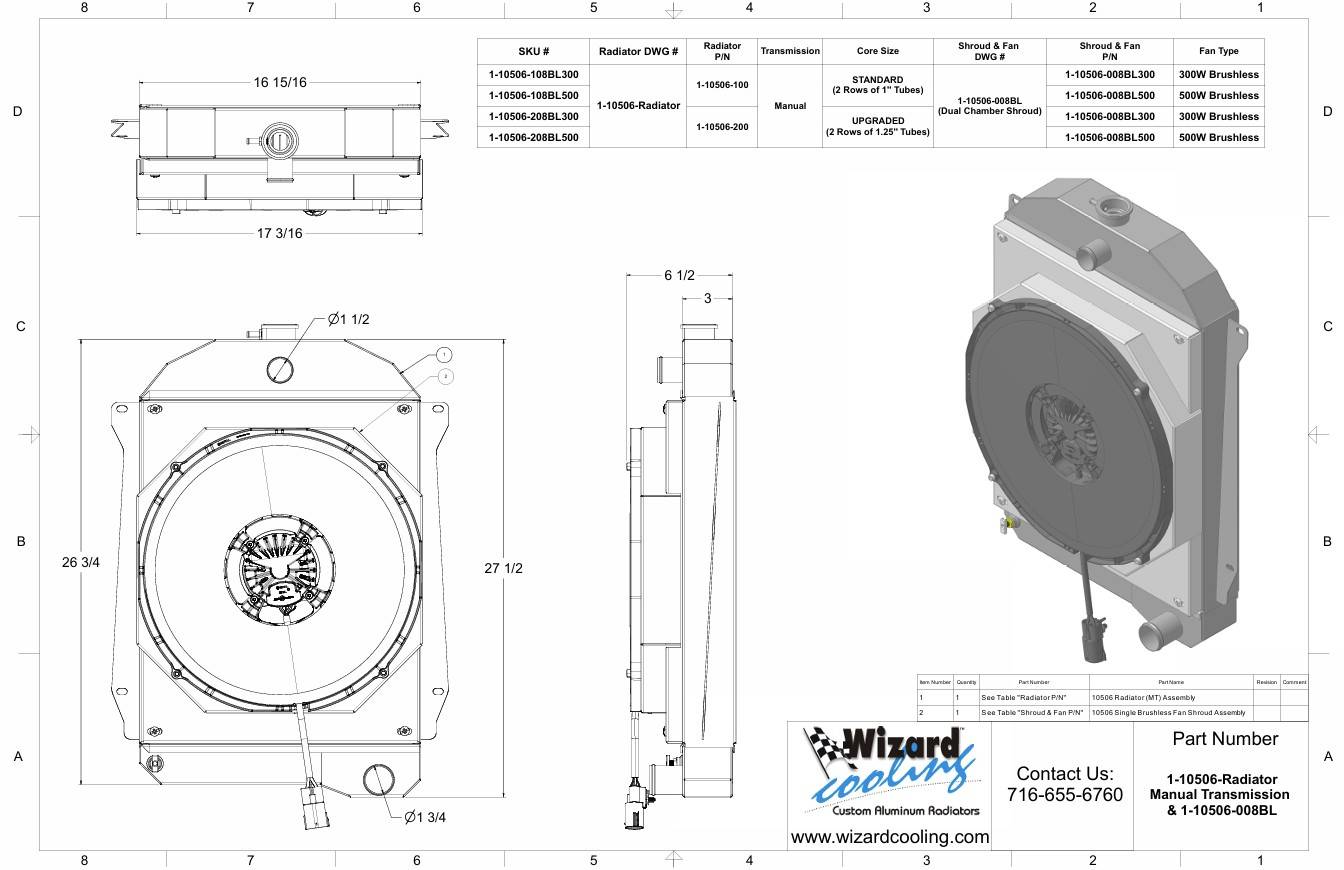

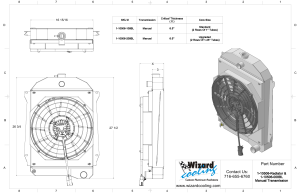

1-10506-radiator-mt-008bl

View & Download Diagram

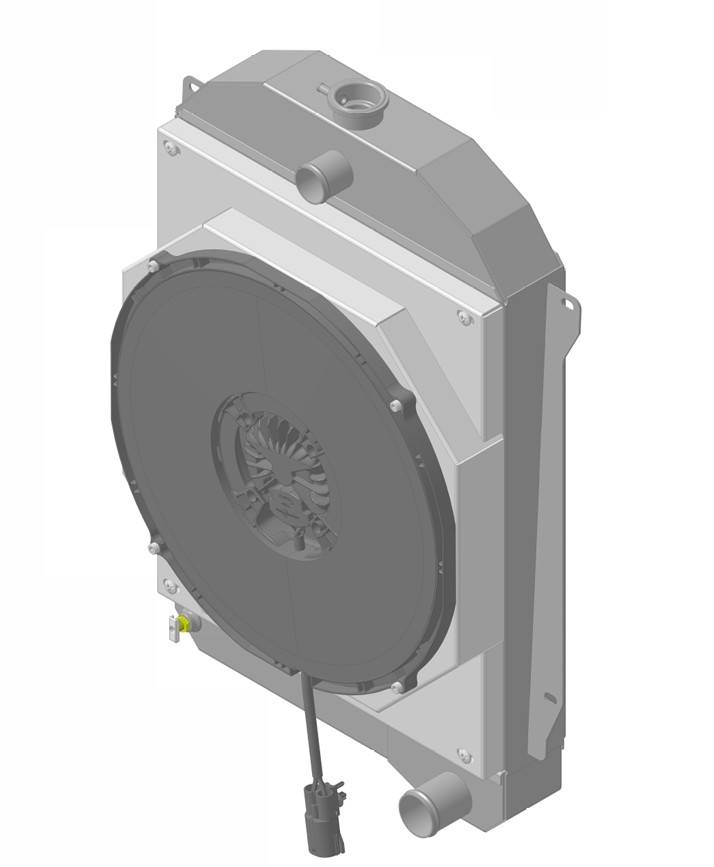

1-10506-radiator-mt-008bl-iso

View & Download Diagram

Details

SKU: 1-10506-208BL300

Item #: 1-10506-208BL300

Brand: Wizard Cooling Inc
Year Make Model: 1940 Chevrolet Car
Year Make Model: 1941 Chevrolet Car
Product Type: Radiator & Fan(s)
Engine: Chevy V8
Application Nuance: Angled Brackets
Shroud YES/NO: Yes
Electric Fan YES/NO: Yes
CRITICAL THICKNESS: 6.50 IN
CRITICAL THICKNESS: 7.50 IN
THICKNESS OF CORE: 2.75 in (Upgraded High Performance Core)
TRANSMISSION OIL COOLER INCLUDED: No
Core Thickness: 2.75 in (Upgraded High Performance Core)
Electric Fan Type: Brushless
MOUNTED AC CONDENSER: No
INLET LOCATION: Center
OUTLET LOCATION: Passenger Side
Expansion Tank Included: No
OUTLET HEADER LENGTH: 16.75 IN
TOTAL CFM (ALL FANS): 2065
CORE ROW QUANTITY: 2
TANK MATERIAL: Aluminum
CORE WIDTH: 16.75 IN
CORE MATERIAL: Aluminum
CUBIC INCHES OF CORE: 956 CuIn
Performance Ranking: Absolute Best
TUBE INSIDE DIAMETER: 1.25 IN
DOWN FLOW OR CROSS FLOW TYPE: Down Flow
OUTLET HEADER WIDTH: 3 IN
OUTLET DIAMETER: 1.75 IN
NUMBER OF ELECTRIC FANS: 1
MOUNTING TYPE: Flange
ENGINE OIL COOLER INCLUDED: No
Internal Transmission Oil Cooler: No
INLET HEADER WIDTH: 3 IN
INLET HEADER LENGTH: 16.75 IN
INLET DIAMETER: 1.50 IN
FAN DIAMETER: 16 IN
CORE HEIGHT: 20.75 IN
FINISH: Aluminum
SHROUD TYPE: Shroud
PACKAGE: Radiator & Fan Package
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 29.0 lbs.
Package Dimensions: W8.0000” x H26.0000” x L35.0000”
Shipping: FREE SHIPPING!!!( Web Orders Only)
Shipping Note: This item ships in its own box.
