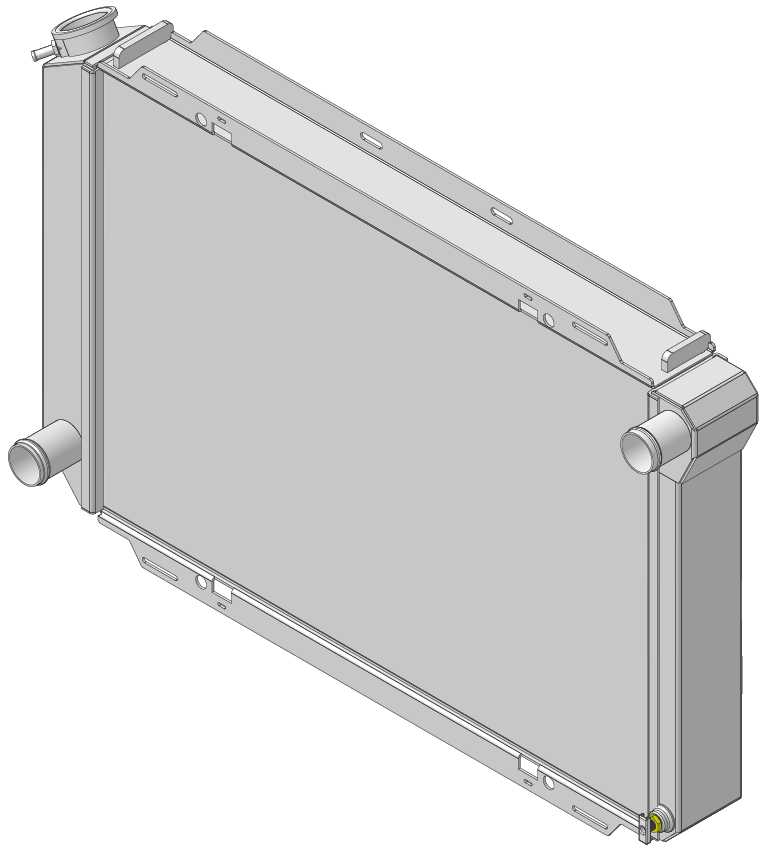

1980-1993 Ford Mustang Aluminum Radiator (Coyote Swap)- 556-200CS

Manual Transmission2.75” Core

(0) Reviews: Write first review

SKU: 1-556-200CS

Manual Transmission

2.75” Core

Availability: Current Build time is 6-8 weeks

Pricing: $749.00

Description
Drawings and Diagrams
Details
Shipping
Documents
Reviews

Description

1980-1993 Ford Mustang Aluminum Radiator (Coyote Swap).
Includes female 3/8"NPT fitting for temp sensor for electric fan sensor.

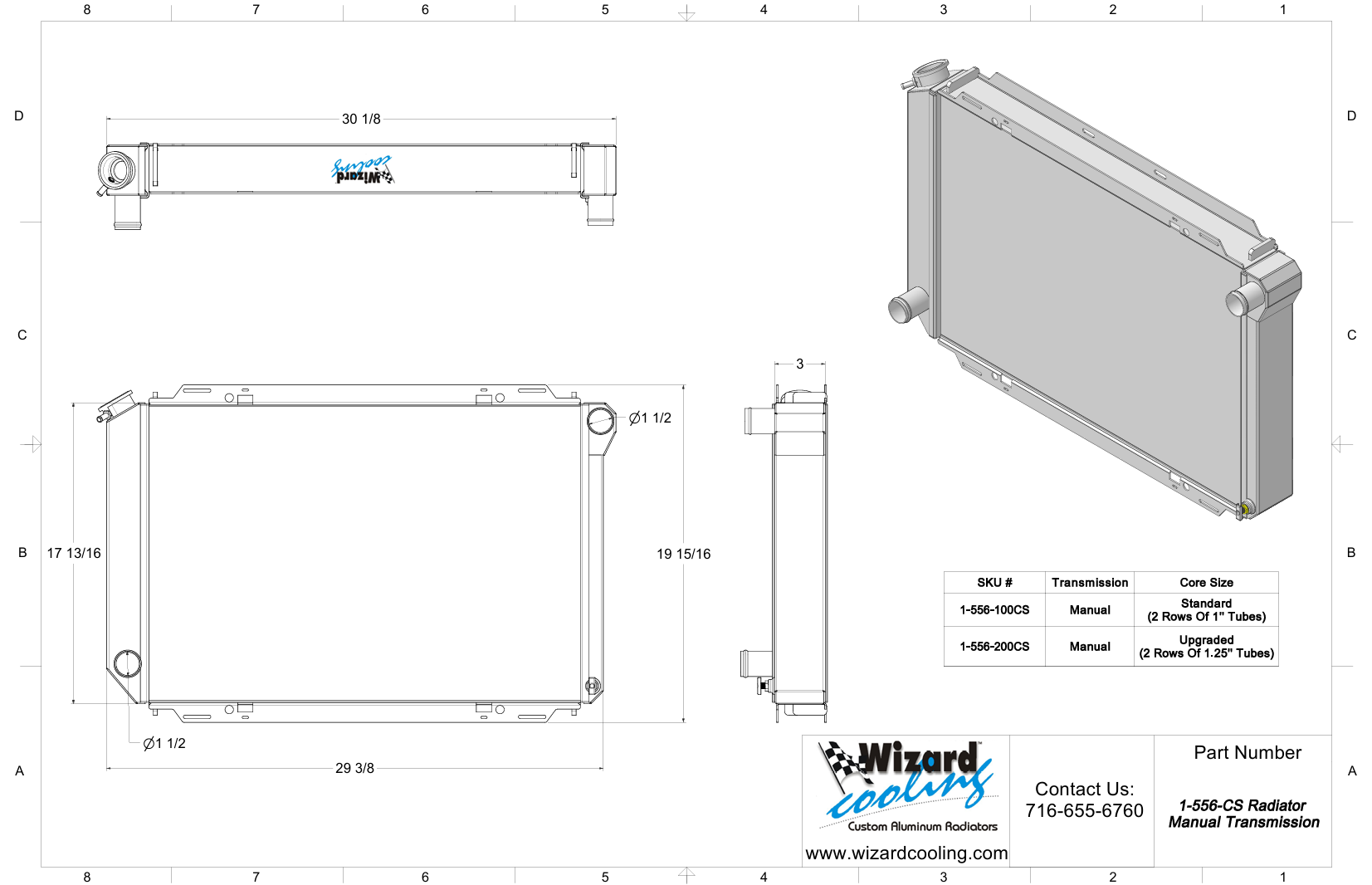

Drawings and Diagrams

1-556-200

View & Download Diagram

1-556-200

View & Download Diagram

Details

SKU: 1-556-200CS
Item #: 1-556-200CS
Brand: Wizard Cooling Inc
Year Make Model: 1980 Ford Fairmont
Year Make Model: 1980 Ford Mustang
Year Make Model: 1980 Ford Thunderbird
Year Make Model: 1980 Mercury Capri
Year Make Model: 1980 Mercury Cougar
Year Make Model: 1980 Mercury Zephyr
Year Make Model: 1981 Ford Fairmont
Year Make Model: 1981 Ford Granada
Year Make Model: 1981 Ford Mustang
Year Make Model: 1981 Ford Thunderbird
Year Make Model: 1981 Mercury Capri
Year Make Model: 1981 Mercury Cougar
Year Make Model: 1981 Mercury Zephyr
Year Make Model: 1982 Ford Fairmont
Year Make Model: 1982 Ford Granada
Year Make Model: 1982 Ford Mustang
Year Make Model: 1982 Ford Thunderbird
Year Make Model: 1982 Lincoln Continental
Year Make Model: 1982 Mercury Capri
Year Make Model: 1982 Mercury Cougar
Year Make Model: 1982 Mercury Zephyr
Year Make Model: 1983 Ford Fairmont
Year Make Model: 1983 Ford LTD
Year Make Model: 1983 Ford Mustang
Year Make Model: 1983 Ford Thunderbird
Year Make Model: 1983 Lincoln Continental
Year Make Model: 1983 Mercury Capri
Year Make Model: 1983 Mercury Cougar
Year Make Model: 1983 Mercury Marquis
Year Make Model: 1983 Mercury Zephyr
Year Make Model: 1984 Ford LTD
Year Make Model: 1984 Ford Mustang
Year Make Model: 1984 Ford Thunderbird
Year Make Model: 1984 Lincoln Continental
Year Make Model: 1984 Lincoln Mark VII
Year Make Model: 1984 Mercury Capri
Year Make Model: 1984 Mercury Cougar
Year Make Model: 1984 Mercury Marquis
Year Make Model: 1985 Ford LTD
Year Make Model: 1985 Ford Mustang
Year Make Model: 1985 Ford Thunderbird
Year Make Model: 1985 Lincoln Continental
Year Make Model: 1985 Lincoln Mark VII
Year Make Model: 1985 Mercury Capri
Year Make Model: 1985 Mercury Cougar
Year Make Model: 1985 Mercury Marquis
Year Make Model: 1986 Ford LTD
Year Make Model: 1986 Ford Mustang
Year Make Model: 1986 Ford Thunderbird
Year Make Model: 1986 Lincoln Continental
Year Make Model: 1986 Lincoln Mark VII
Year Make Model: 1986 Mercury Capri
Year Make Model: 1986 Mercury Cougar
Year Make Model: 1986 Mercury Marquis
Year Make Model: 1987 Ford Mustang
Year Make Model: 1987 Ford Thunderbird
Year Make Model: 1987 Lincoln Continental
Year Make Model: 1987 Lincoln Mark VII
Year Make Model: 1987 Mercury Cougar
Year Make Model: 1988 Ford Mustang
Year Make Model: 1988 Ford Thunderbird
Year Make Model: 1988 Lincoln Mark VII
Year Make Model: 1988 Mercury Cougar
Year Make Model: 1989 Ford Mustang
Year Make Model: 1989 Lincoln Mark VII
Year Make Model: 1990 Ford Mustang
Year Make Model: 1990 Lincoln Mark VII
Year Make Model: 1991 Ford Mustang
Year Make Model: 1991 Lincoln Mark VII
Year Make Model: 1992 Ford Mustang
Year Make Model: 1992 Lincoln Mark VII
Year Make Model: 1993 Ford Mustang
Product Type: Radiator
Engine: Coyote Swap
Electric Fan YES/NO: No
CRITICAL THICKNESS: 3.00 IN
THICKNESS OF CORE: 2.75 in (Upgraded High Performance Core)
TRANSMISSION OIL COOLER INCLUDED: No
Core Thickness: 2.75 in (Upgraded High Performance Core)
MOUNTED AC CONDENSER: No
OUTLET LOCATION: Driver Side
Expansion Tank Included: No
INLET LOCATION: Passenger Side
TANK MATERIAL: Aluminum
INLET HEADER LENGTH: 17.625 In
TUBE INSIDE DIAMETER: 1.25 IN
OUTLET HEADER WIDTH: 3 IN
OUTLET HEADER LENGTH: 17.625 In
OUTLET DIAMETER: 1.50 IN
MOUNTING TYPE: Saddle
INLET HEADER WIDTH: 3 IN
INLET DIAMETER: 1.25 IN
ENGINE OIL COOLER INCLUDED: No
DOWN FLOW OR CROSS FLOW TYPE: Cross Flow
CUBIC INCHES OF CORE: 1236 CuIn
CRITICAL THICKNESS ALL: 5.00 IN
CRITICAL THICKNESS ALL: 5.50 IN
CRITICAL THICKNESS ALL: 6.00 IN
CRITICAL THICKNESS ALL: 6.50 IN
CRITICAL THICKNESS ALL: 7.50 IN
CORE WIDTH: 25.50 IN
CORE ROW QUANTITY: 2
CORE MATERIAL: Aluminum
CORE HEIGHT: 17.625 IN
FINISH: Aluminum
PACKAGE: Radiator Only
Availability Remarks: Current Build time is 6-8 weeks
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 25.0 lbs.
Package Dimensions: W35.0000” x H26.0000” x L8.0000”
Shipping Note: This item ships in its own box.
