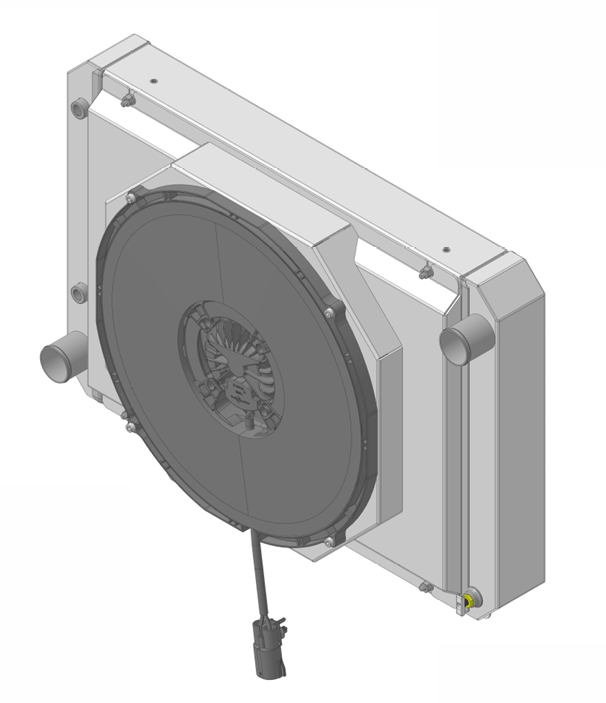

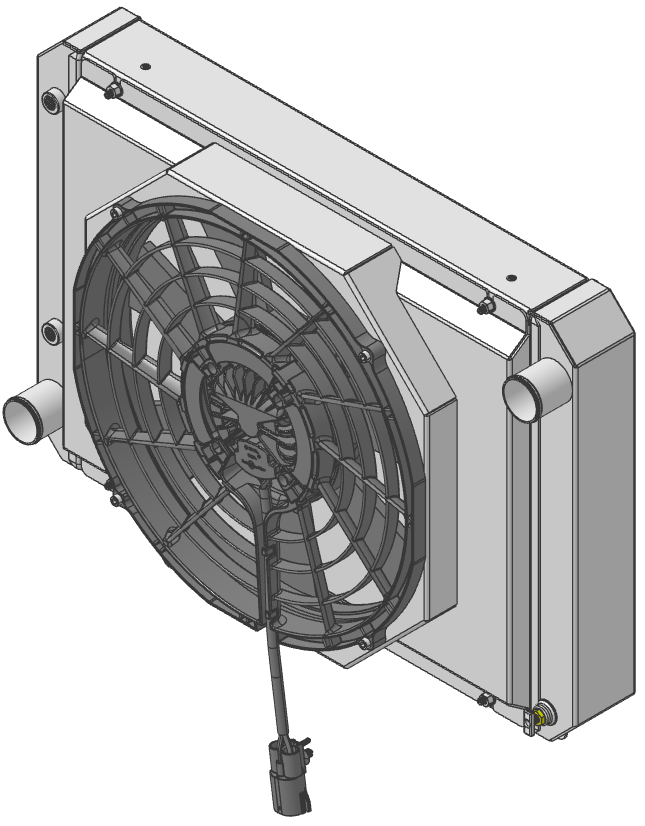

1964-65 Ford Thunderbird Aluminum Radiator (Shroud w/ Brushless Fan) - 1652-218BL300

SKU: 1-1652-218BL300

Pricing: $1,649.00

Customize Your Item

This radiator will come with a 300 watt fan unless otherwise indicated. Upgrading to the 500 watt fan will not change the overall thickness of your package.

Pick your WATTS (Fan Motor Size)

- Pick your WATTS (Fan Motor Size) -

* required

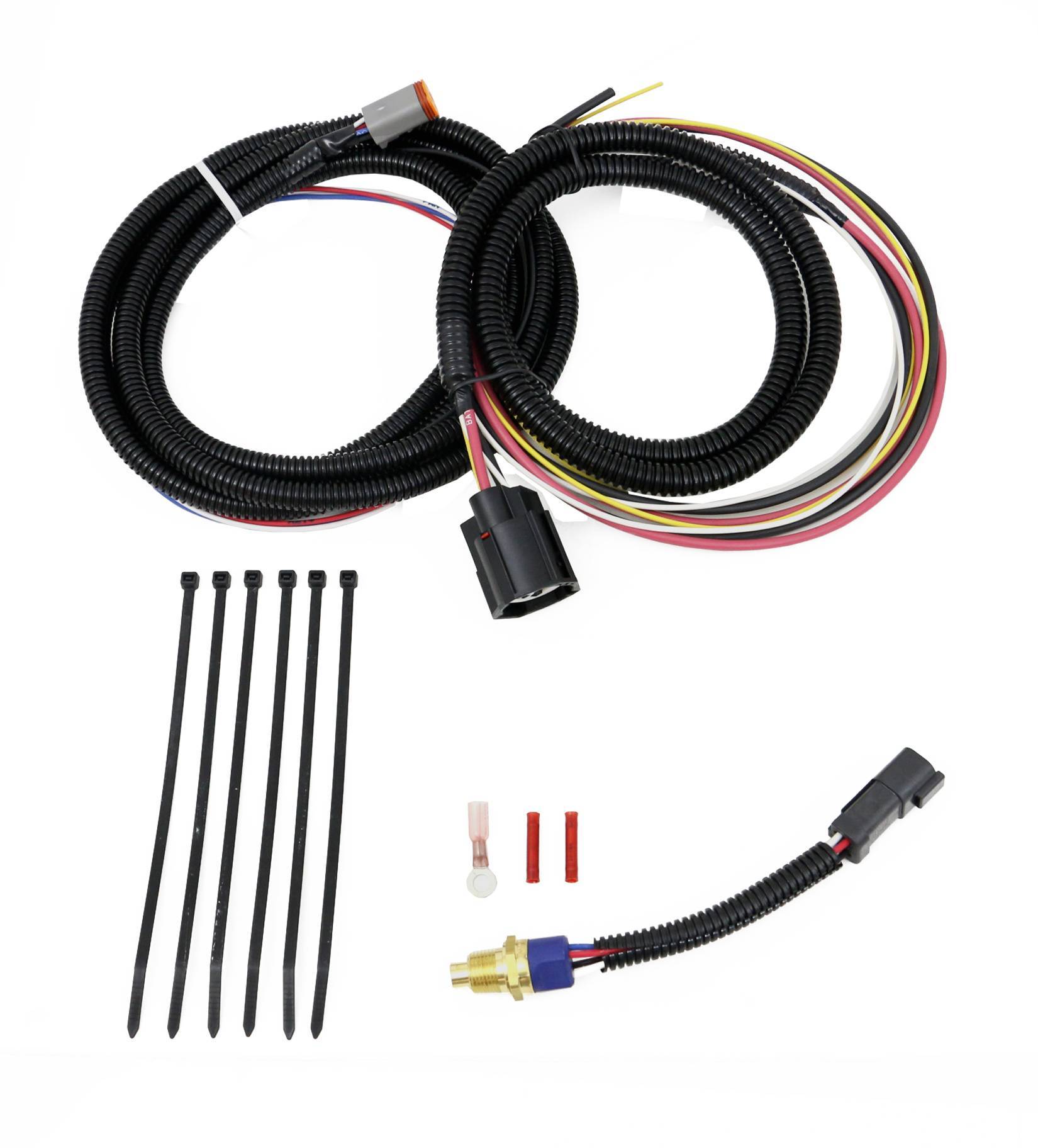

Single Brushless Fan Wiring Kit

- Please Select -

Finish Options

- Finish Options -

Qty:

FREE SHIPPING!!!( Web Orders Only)

Drawings and Diagrams
Details
Shipping
Reviews

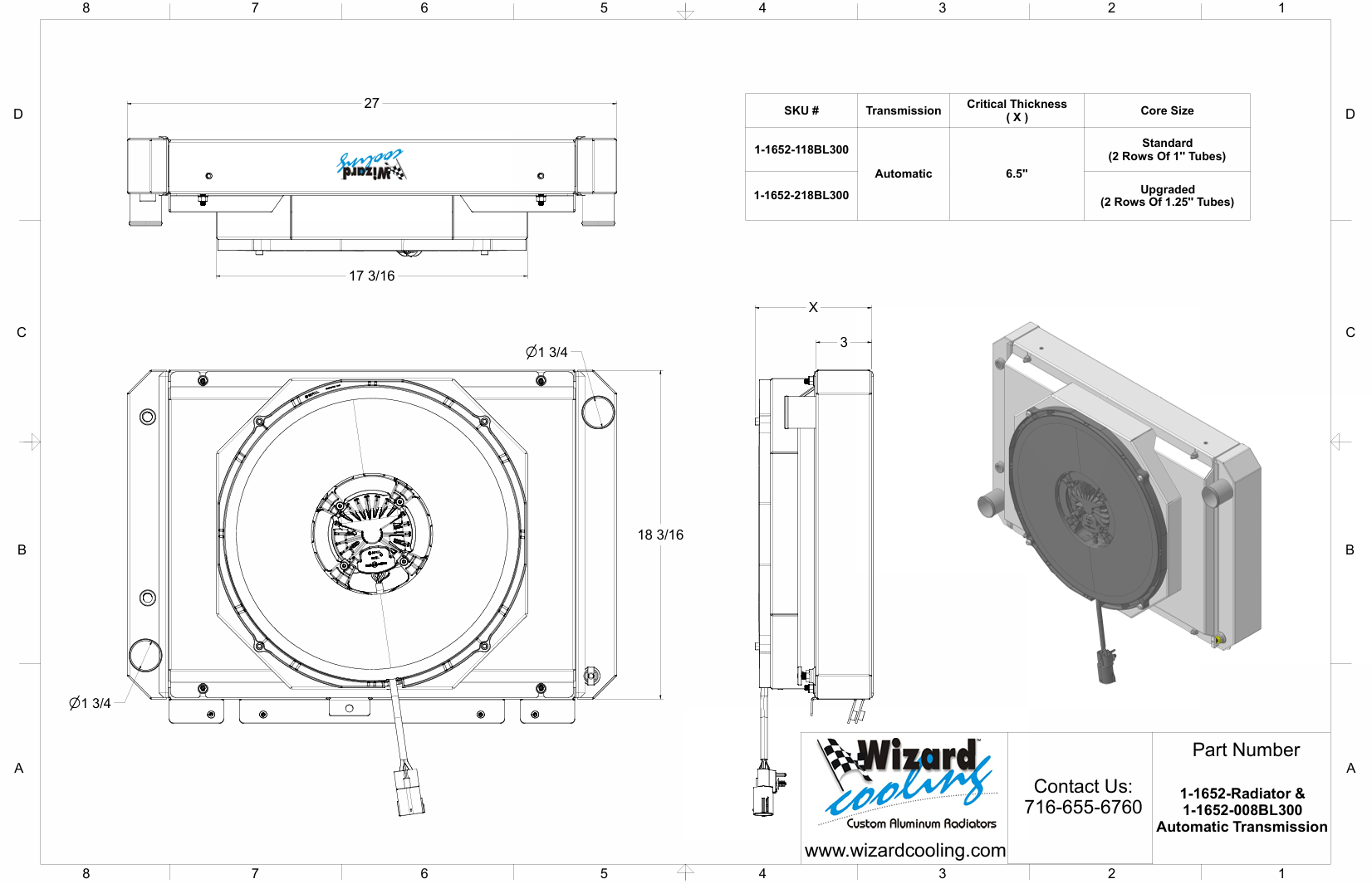

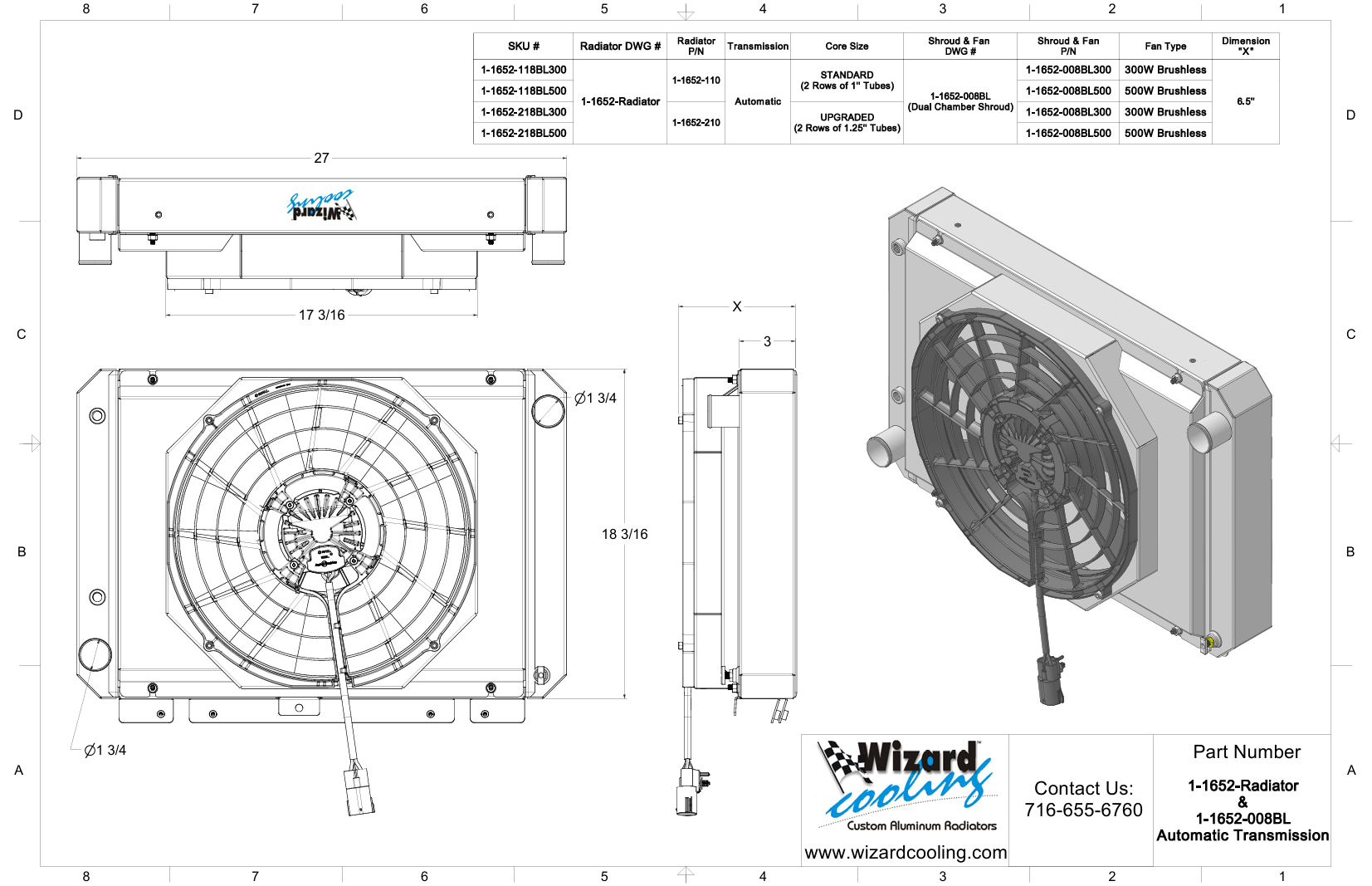

Drawings and Diagrams

1-1652-at-radiator-1-1652-008bl500

View & Download Diagram

Details

SKU: 1-1652-218BL300

Item #: 1-1652-218BL300

Brand: Wizard Cooling Inc
Year Make Model: 1964 Ford Thunderbird
Year Make Model: 1965 Ford Thunderbird
Product Type: Radiator & Fan(s)
Shroud YES/NO: Yes
Electric Fan YES/NO: Yes
CRITICAL THICKNESS: 6.50 IN
CRITICAL THICKNESS: 7.50 IN
THICKNESS OF CORE: 2.75 in (Upgraded High Performance Core)
Core Thickness: 2.75 in (Upgraded High Performance Core)
TRANSMISSION OIL COOLER INCLUDED: Yes
Electric Fan Type: Brushless
MOUNTED AC CONDENSER: No
Expansion Tank Included: No
OUTLET LOCATION: Driver Side
INLET LOCATION: Passenger Side
TOTAL CFM (ALL FANS): 2065
TANK MATERIAL: Aluminum
MOUNTING TYPE: Bottom Flange
TRANSMISSION OIL COOLER FITTING DIAMETER: 1/4 NPT
TRANSMISSION OIL COOLER PLATE QUANTITY: 5
Performance Ranking: Absolute Best
TRANSMISSION OIL COOLER TYPE: Plate
TUBE INSIDE DIAMETER: 1.25 IN
OUTLET HEADER WIDTH: 3 IN
OUTLET HEADER LENGTH: 22.50 IN
INLET DIAMETER: 1.75 IN
CORE MATERIAL: Aluminum
CORE ROW QUANTITY: 2
CORE WIDTH: 22.50 IN
CUBIC INCHES OF CORE: 1114 CuIn
DOWN FLOW OR CROSS FLOW TYPE: Cross Flow
ENGINE OIL COOLER INCLUDED: No
FAN DIAMETER: 16 IN
OUTLET DIAMETER: 1.75 IN
INLET HEADER LENGTH: 22.50 IN
INLET HEADER WIDTH: 3 IN
Internal Transmission Oil Cooler: Yes
NUMBER OF ELECTRIC FANS: 1
FINISH: Aluminum
CORE HEIGHT: 18 IN
SHROUD TYPE: Shroud
PACKAGE: Radiator & Fan Package
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 28.0 lbs.
Package Dimensions: W35.0000” x H26.0000” x L8.0000”
Shipping: FREE SHIPPING!!!( Web Orders Only)
Shipping Note: This item ships in its own box.
