1970-1981 Pontiac Firebird / Trans AM (27.25" Wide Core) LS Swap Radiator (w/ 14" Brushless Fan & Shroud) - 477-202LSBL500

LS Swap, LS Swap (Supercharged), 27.25" Core, Manual Transmission, 2.75” Core, Shroud & 14" Brushless Fan(s), 500 watt

(0) Reviews: Write first review

SKU: 1-477-202LSBL500

LS Swap, LS Swap (Supercharged), 27.25” Core, Manual Transmission, 2.75” Core, Shroud & 14" Brushless Fan(s), 500 watt

Pricing: $2,349.00

Customize Your Item

Dual Brushless Fan Wiring Kit:

- Please Select -

Finish Options

- Finish Options -

Qty:

FREE SHIPPING!!!( Web Orders Only)

Description
Drawings and Diagrams
Details
Shipping
Reviews

Description

1970-1981 Pontiac Firebird LS Swap Radiator. Core is 27.25" Wide (w/ 14" Brushless Fan & Shroud)

Drawings and Diagrams

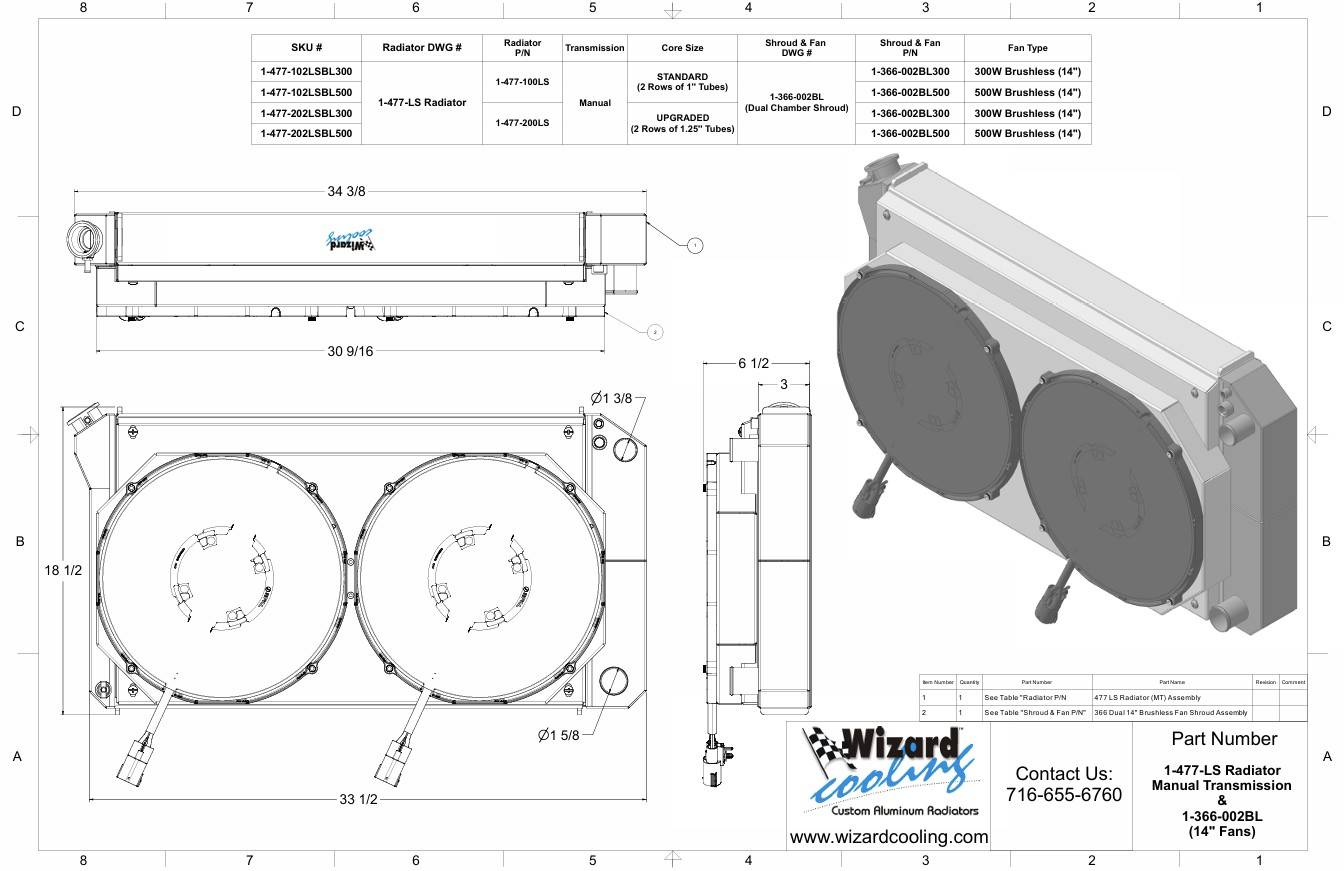

1-477-ls-radiator-mt-1-366-002bl-14

View & Download Diagram

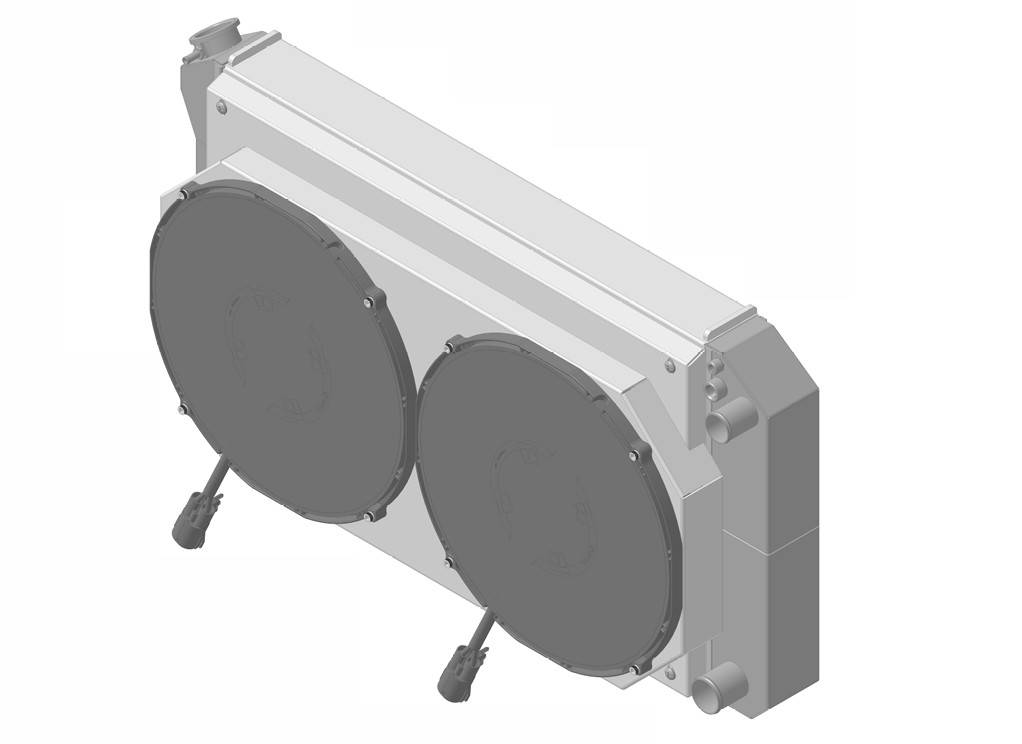

1-477-ls-radiator-mt-1-366-002bl-14-iso

View & Download Diagram

Details

SKU: 1-477-202LSBL500

Item #: 1-477-202LSBL500

Brand: Wizard Cooling Inc
Year Make Model: 1974 Pontiac Trans Am
Year Make Model: 1975 Pontiac Firebird
Year Make Model: 1975 Pontiac Trans Am
Year Make Model: 1976 Pontiac Firebird
Year Make Model: 1976 Pontiac Trans Am
Year Make Model: 1977 Pontiac Firebird
Year Make Model: 1977 Pontiac Trans Am
Year Make Model: 1978 Pontiac Firebird
Year Make Model: 1978 Pontiac Trans Am
Year Make Model: 1979 Pontiac Firebird
Year Make Model: 1979 Pontiac Trans Am
Year Make Model: 1980 Pontiac Firebird
Year Make Model: 1980 Pontiac Trans Am
Year Make Model: 1981 Pontiac Firebird
Year Make Model: 1981 Pontiac Trans Am
Engine: LS Swap
Engine: LS Swap (Supercharged)
Application Nuance: 27.25” Core
Shroud YES/NO: Yes
Electric Fan YES/NO: Yes
THICKNESS OF CORE: 2.75 in (Upgraded High Performance Core)
TRANSMISSION OIL COOLER INCLUDED: No
Electric Fan Type: Brushless
Core Thickness: 2.75 in (Upgraded High Performance Core)
Shroud: Yes
MOUNTED AC CONDENSER: No
OUTLET LOCATION: Passenger Side
INLET LOCATION: Driver Side
TOTAL CFM (ALL FANS): 4800
TANK MATERIAL: Aluminum
INLET HEADER WIDTH: 3 IN
TUBE INSIDE DIAMETER: 1.25 IN
OUTLET HEADER WIDTH: 3 IN
OUTLET HEADER LENGTH: 17.50 IN
Watts: 500
OUTLET DIAMETER: 1.625 IN
MOUNTING TYPE: Saddle
INLET HEADER LENGTH: 17.50 IN
INLET DIAMETER: 1.375 IN
ENGINE OIL COOLER INCLUDED: No
Electric Fans: Yes
DOWN FLOW OR CROSS FLOW TYPE: Cross Flow
CUBIC INCHES OF CORE: 1359 CuIn
CRITICAL THICKNESS ALL: 6.50 IN
CRITICAL THICKNESS ALL: 7.50 IN
CORE WIDTH: 28.25 IN
CORE ROW QUANTITY: 2
CORE MATERIAL: Aluminum
FINISH: Aluminum
CORE HEIGHT: 17.50 IN
SHROUD TYPE: Shroud
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 28.0 lbs.
Package Dimensions: W35.0000” x H26.0000” x L8.0000”
Shipping: FREE SHIPPING!!!( Web Orders Only)
Shipping Note: This item ships in its own box.
