1966-1969 26" Core, Hellcat Applications, Aluminum Radiator - 1640-210HC

V, 26” Core, Manual Transmission, 2.75” Core,

(0) Reviews: Write first review

SKU: 1-1640-210HC

Hellcat Swap, 26” Core, Automatic Transmission, 2.75” Core

Availability: Current Build time is 6-8 weeks

Pricing: $749.00

Description
Drawings and Diagrams
Details
Shipping
Documents
Reviews

Description

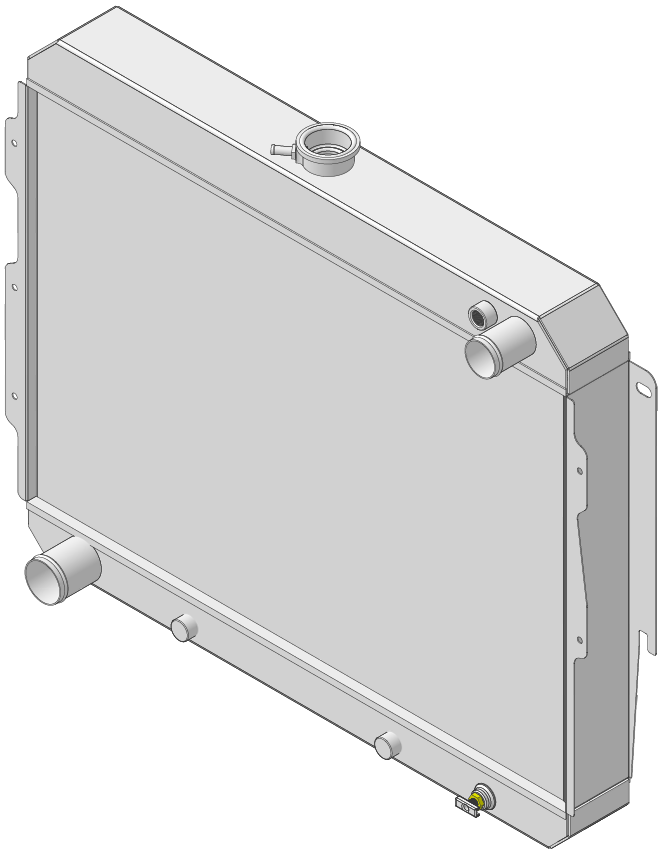

1966-1969 26" Core, Hellcat Swap Applications Aluminum Radiator. Automatic transmission (Transmission cooler built in).

Designed slightly different than our standard big block radiator. Hose connection diameter and positions slightly moved. This radiator will accept our brushless fan/ shroud option and expansion tank system.

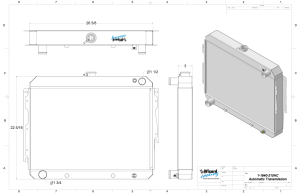

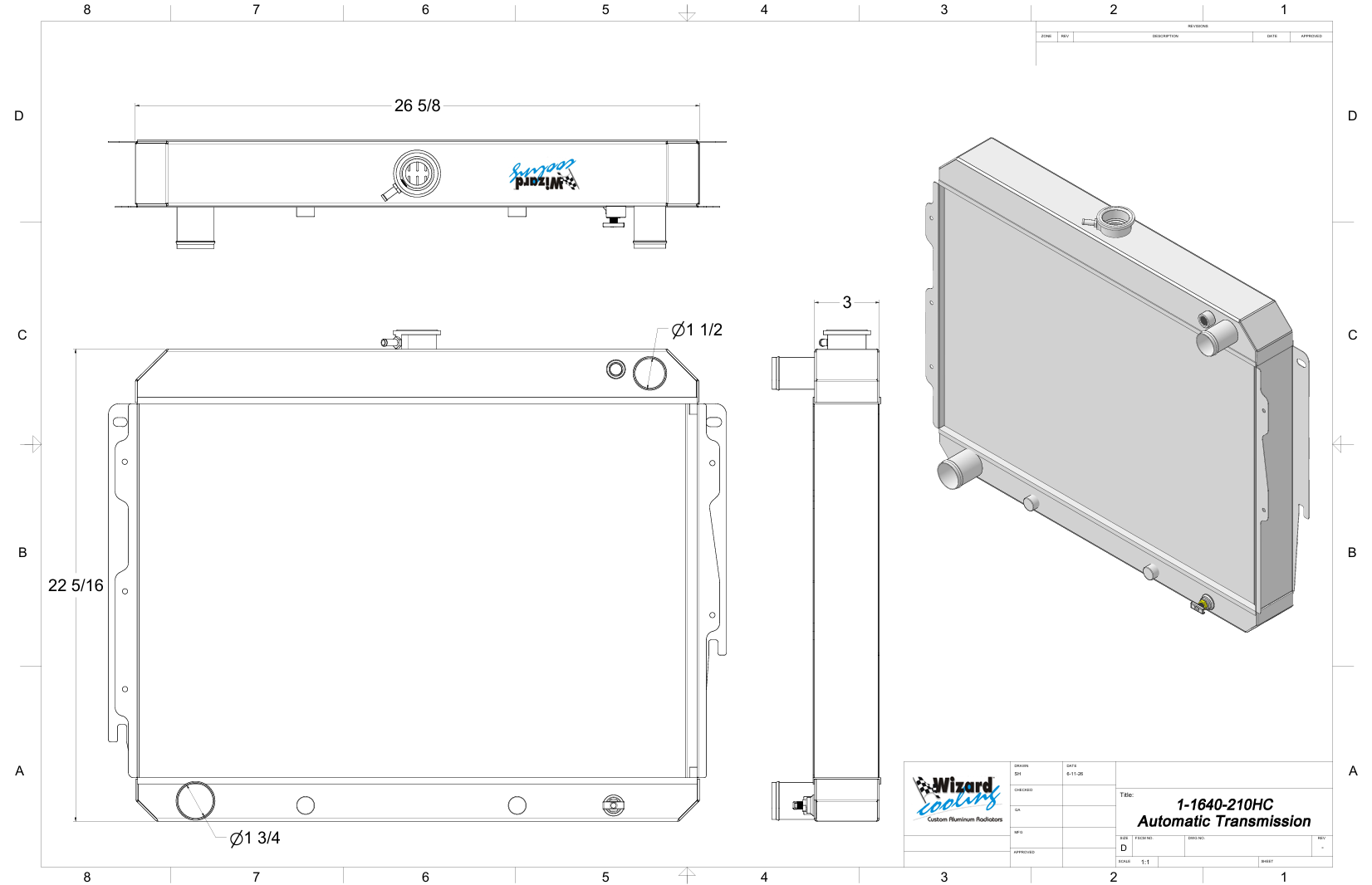

Drawings and Diagrams

1-1640-200

View & Download Diagram

1-1640-200

View & Download Diagram

Details

SKU: 1-1640-210HC
Item #: 1-1640-210HC
Brand: Wizard Cooling Inc
Year Make Model: 1966 Dodge Charger
Year Make Model: 1966 Dodge Coronet
Year Make Model: 1966 Plymouth Barracuda
Year Make Model: 1966 Plymouth Belvedere
Year Make Model: 1966 Plymouth Belvedere II
Year Make Model: 1966 Plymouth Satellite
Year Make Model: 1967 Dodge Charger
Year Make Model: 1967 Dodge Coronet
Year Make Model: 1967 Plymouth Barracuda
Year Make Model: 1967 Plymouth Belvedere
Year Make Model: 1967 Plymouth GTX
Year Make Model: 1967 Plymouth Satellite
Year Make Model: 1968 Dodge Charger
Year Make Model: 1968 Dodge Coronet
Year Make Model: 1968 Plymouth Barracuda
Year Make Model: 1968 Plymouth Belvedere
Year Make Model: 1968 Plymouth GTX
Year Make Model: 1968 Plymouth Road Runner
Year Make Model: 1968 Plymouth Satellite
Year Make Model: 1969 Dodge Charger
Year Make Model: 1969 Dodge Coronet
Year Make Model: 1969 Plymouth Barracuda
Year Make Model: 1969 Plymouth Belvedere
Year Make Model: 1969 Plymouth GTX
Year Make Model: 1969 Plymouth Road Runner
Year Make Model: 1969 Plymouth Satellite
Product Type: Radiator
Engine: Hellcat Swap
Application Nuance: 26” Core
Shroud YES/NO: No
Electric Fan YES/NO: No
CRITICAL THICKNESS: 3.00 IN
THICKNESS OF CORE: 2.75 in (Upgraded High Performance Core)
TRANSMISSION OIL COOLER INCLUDED: No
Core Thickness: 2.75 in (Upgraded High Performance Core)
MOUNTED AC CONDENSER: No
Expansion Tank Included: No
OUTLET LOCATION: Driver Side
INLET LOCATION: Passenger Side
CUBIC INCHES OF CORE: 1294 CuIn
CORE MATERIAL: Aluminum
TANK MATERIAL: Aluminum
CORE ROW QUANTITY: 2
TUBE INSIDE DIAMETER: 1.25 IN
OUTLET HEADER WIDTH: 3 IN
OUTLET HEADER LENGTH: 26.50 IN
MOUNTING TYPE: Flange
INLET HEADER WIDTH: 3 IN
INLET HEADER LENGTH: 26.50 IN
CORE WIDTH: 26.50 IN
FAN DIAMETER: 12 IN
ENGINE OIL COOLER INCLUDED: No
CRITICAL THICKNESS ALL: 5.00 IN
CRITICAL THICKNESS ALL: 5.50 IN
CRITICAL THICKNESS ALL: 6.00 IN
CRITICAL THICKNESS ALL: 6.50 IN
CRITICAL THICKNESS ALL: 7.50 IN
Electric Fans: No
DOWN FLOW OR CROSS FLOW TYPE: Down Flow
FINISH: Aluminum
CORE HEIGHT: 17.75 IN
PACKAGE: Radiator Only
Availability Remarks: Current Build time is 6-8 weeks
Condition: New

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 32.0 lbs.
Package Dimensions: W35.0000” x H26.0000” x L8.0000”
Shipping Note: This item ships in its own box.

Documents

1-1640-210HC Web.pdf
