Wizard Cooling Inc - 1966-1969 26", Mopar Big Block Applications - 1640-100

Additional Images

1966-1969 26", Mopar Big Block Applications - 1640-100

B/B, 26” Core, Manual Transmission, 2.25” Core

Product Rating:

Currently /5 Stars

SKU: 1-1640-100

B/B, 26” Core, Manual Transmission, 2.25” Core

Pricing: $649.00

Customize Your Item

Double check that the cooling system you're building is not to thick! The radiator you selected is 3" thick, that will need to be added to the dimension below to know the total thickness of the package. More detail can be seen for each of these packages if you look at DIRECT FAN FAN OPTIONS under the "Fan & Shroud" pull down menu in the header.

Electric Fan Packages

- Please Select -

The switch you select will be the temp the fan will be running at full speed. (Fans will come on 20 degrees less than temp rating)

BRUSHLESS Fan Temperature

- Please Select -

Standard BRUSH Style Fan Wiring

- Please Select -

AC Condenser bracketry matches the bolt pattern of the radiator and is designed to be mounted by sandwiching the brackets between the core support and the radiator mounting brackets. The Condenser body is designed to be used by with any aftermarket AC system. The fittings on this unit are #6 and #8

AC Condenser

- Please Select -

Finish Options

- Finish Options -

Qty:

FREE SHIPPING!!!( Web Orders Only)

Description
Drawings and Diagrams
Details
Shipping
Documents
Reviews

Description

1966-1969 26", Mopar Big Block Applications

Product Series

1966-1969 26", Mopar Big Block Applications

26” Opening in Core Support

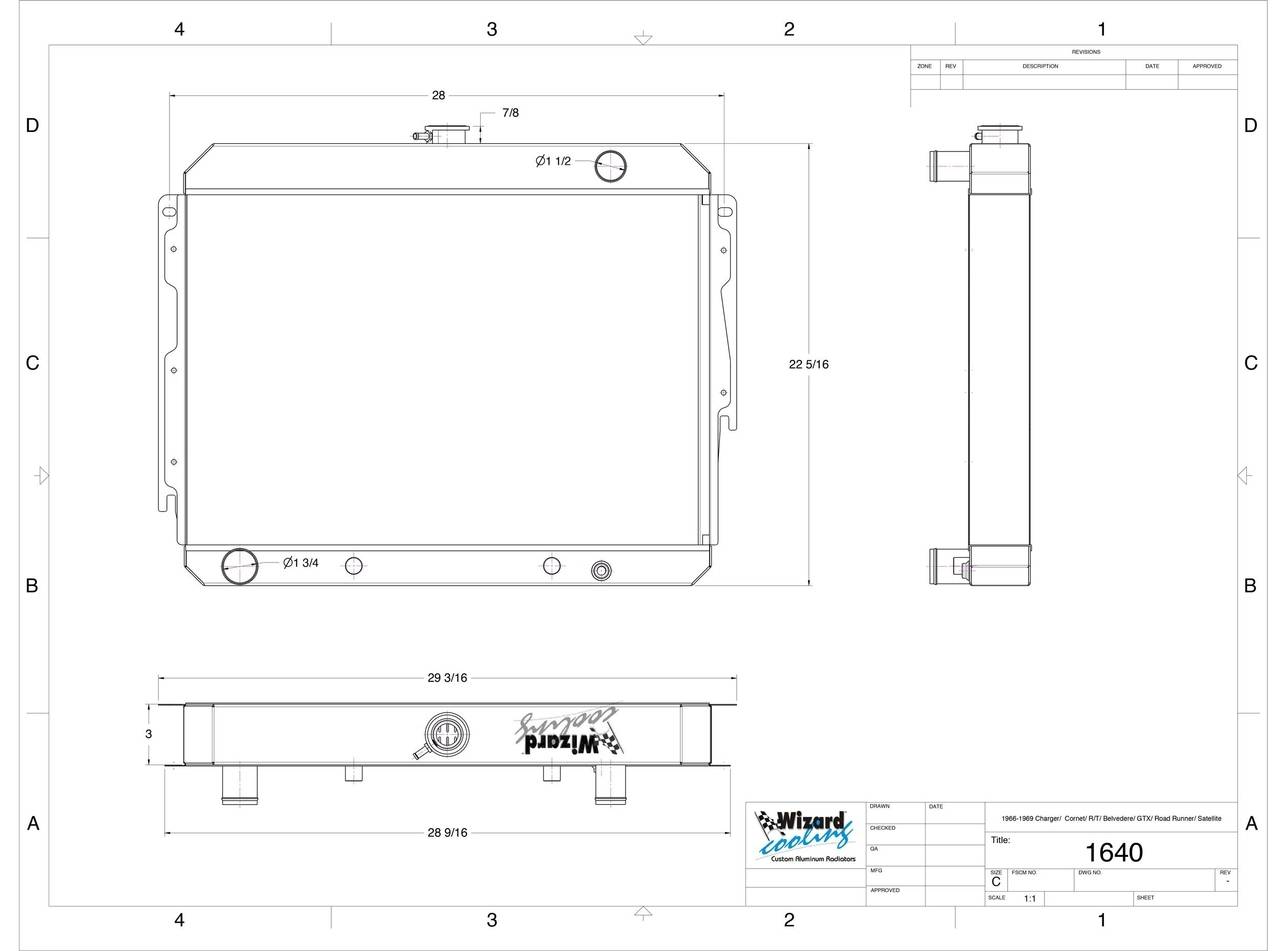

Drawings and Diagrams

1-1640-100

View & Download Diagram

1-1640-100

View & Download Diagram

Details

SKU: 1-1640-100
Item #: 1-1640-100
Brand: Wizard Cooling Inc
Year Make Model: 1966 Dodge Coronet
Year Make Model: 1966 Dodge Charger
Year Make Model: 1966 Plymouth Satellite
Year Make Model: 1966 Plymouth Belvedere II
Year Make Model: 1966 Plymouth Belvedere
Year Make Model: 1966 Plymouth Barracuda
Year Make Model: 1967 Dodge Coronet
Year Make Model: 1967 Dodge Charger
Year Make Model: 1967 Plymouth Satellite
Year Make Model: 1967 Plymouth GTX
Year Make Model: 1967 Plymouth Belvedere
Year Make Model: 1967 Plymouth Barracuda
Year Make Model: 1968 Dodge Coronet
Year Make Model: 1968 Dodge Charger
Year Make Model: 1968 Plymouth Satellite
Year Make Model: 1968 Plymouth Road Runner
Year Make Model: 1968 Plymouth GTX
Year Make Model: 1968 Plymouth Belvedere
Year Make Model: 1968 Plymouth Barracuda
Year Make Model: 1969 Dodge Coronet
Year Make Model: 1969 Dodge Charger
Year Make Model: 1969 Plymouth Satellite
Year Make Model: 1969 Plymouth Road Runner
Year Make Model: 1969 Plymouth GTX
Year Make Model: 1969 Plymouth Belvedere
Year Make Model: 1969 Plymouth Barracuda
Product Type: Radiator
Engine: B/B
Application Nuance: 26” Core
Shroud YES/NO: No
Electric Fan YES/NO: No
CRITICAL THICKNESS: 3.00 IN
THICKNESS OF CORE: 2.25 in (Standard High Performance Core)
Core Thickness: 2.25 in (Standard High Performance Core)
TRANSMISSION OIL COOLER INCLUDED: No
MOUNTED AC CONDENSER: No
INLET LOCATION: Passenger Side
Expansion Tank Included: No
OUTLET LOCATION: Driver Side
OUTLET DIAMETER: 1.75 IN
INLET HEADER WIDTH: 3 IN
OUTLET HEADER LENGTH: 26.50 IN
OUTLET HEADER WIDTH: 3 IN
TANK MATERIAL: Aluminum
TUBE INSIDE DIAMETER: 1 IN
CRITICAL THICKNESS ALL: 5.00 IN
CRITICAL THICKNESS ALL: 5.50 IN
CRITICAL THICKNESS ALL: 6.00 IN
CRITICAL THICKNESS ALL: 6.50 IN
CRITICAL THICKNESS ALL: 7.50 IN
MOUNTING TYPE: Flange
INLET HEADER LENGTH: 26.50 IN
INLET DIAMETER: 1.50 IN
FAN DIAMETER: 12 IN
Electric Fans: No
DOWN FLOW OR CROSS FLOW TYPE: Down Flow
CUBIC INCHES OF CORE: 1058 CuIn
CORE WIDTH: 26.50 IN
CORE ROW QUANTITY: 2
CORE MATERIAL: Aluminum
FINISH: Aluminum
CORE HEIGHT: 17.75 IN
PACKAGE: Radiator Only
Condition: New

Categories

Product Series

1966-1969 26", Mopar Big Block Applications

26” Opening in Core Support

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 31.0 lbs.
Package Dimensions: W35.0000” x H26.0000” x L8.0000”
Shipping: FREE SHIPPING!!!( Web Orders Only)
Shipping Note: This item ships in its own box.

Documents

Customer Reviews

Total Reviews (1)

Great Radiator

Currently 5/5 Stars

Reviewed by: Samuel05/06/2018 04:45PM

Purchased from: Wizard Cooling

Comments:
Fits Great in My 67 Coronet R/T & it is keeping my 440hp block Motor that was Stroked to 505" & 575hp. Looks good & Keeping her cool.
