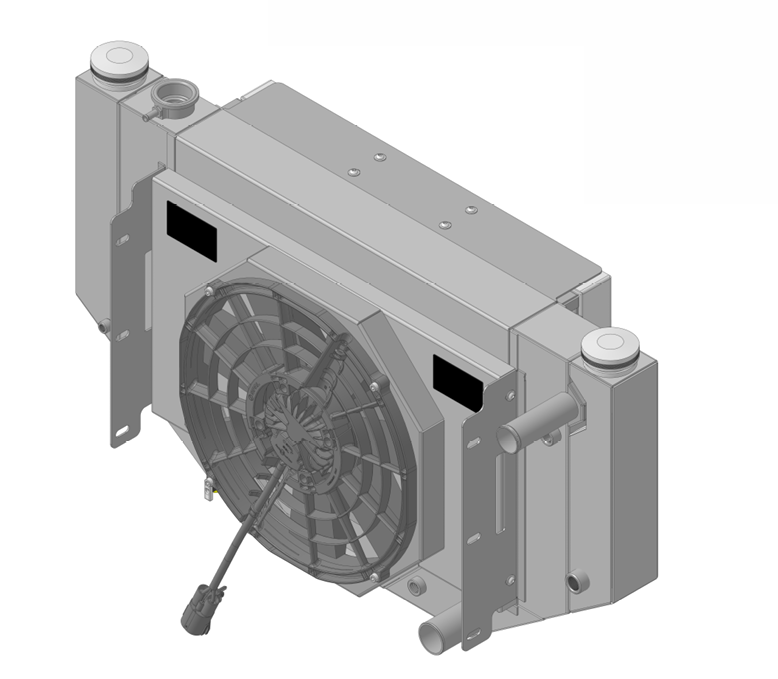

Wizard Cooling Inc - 1956-1957 CHEVROLET Bel-Air (LS SWAP, Cross Flow w/ Brushless Fans) - 1657-218CFCLSBLACINXX3

Additional Images

1956-1957 CHEVROLET Bel-Air (LS SWAP, Cross Flow w/ Brushless Fans) - 1657-218CFCLSBLACINXX3

LS Swap, LS (Supercharged),V8 Core Support (Cross Flow Conversion Radiator),Automatic Transmission, 2.25” Core, Shroud & Brushless Fan(s), AC Condenser Tank(s)

(0) Reviews: Write first review

SKU: 1-1657-218CFCLSBLACINXX3

LS Swap, LS (Supercharged),V8 Core Support (Cross Flow Conversion Radiator),Automatic Transmission, 2.25” Core, Shroud & Brushless Fan(s), AC Condenser Tank(s)

Pricing: $2,899.00

Customize Your Item

This radiator will come with a 300 watt fan unless otherwise indicated. Upgrading to the 500 watt fan will not change the overall thickness of your package.

Pick your WATTS (Fan Motor Size)

- Pick your WATTS (Fan Motor Size) -

* required

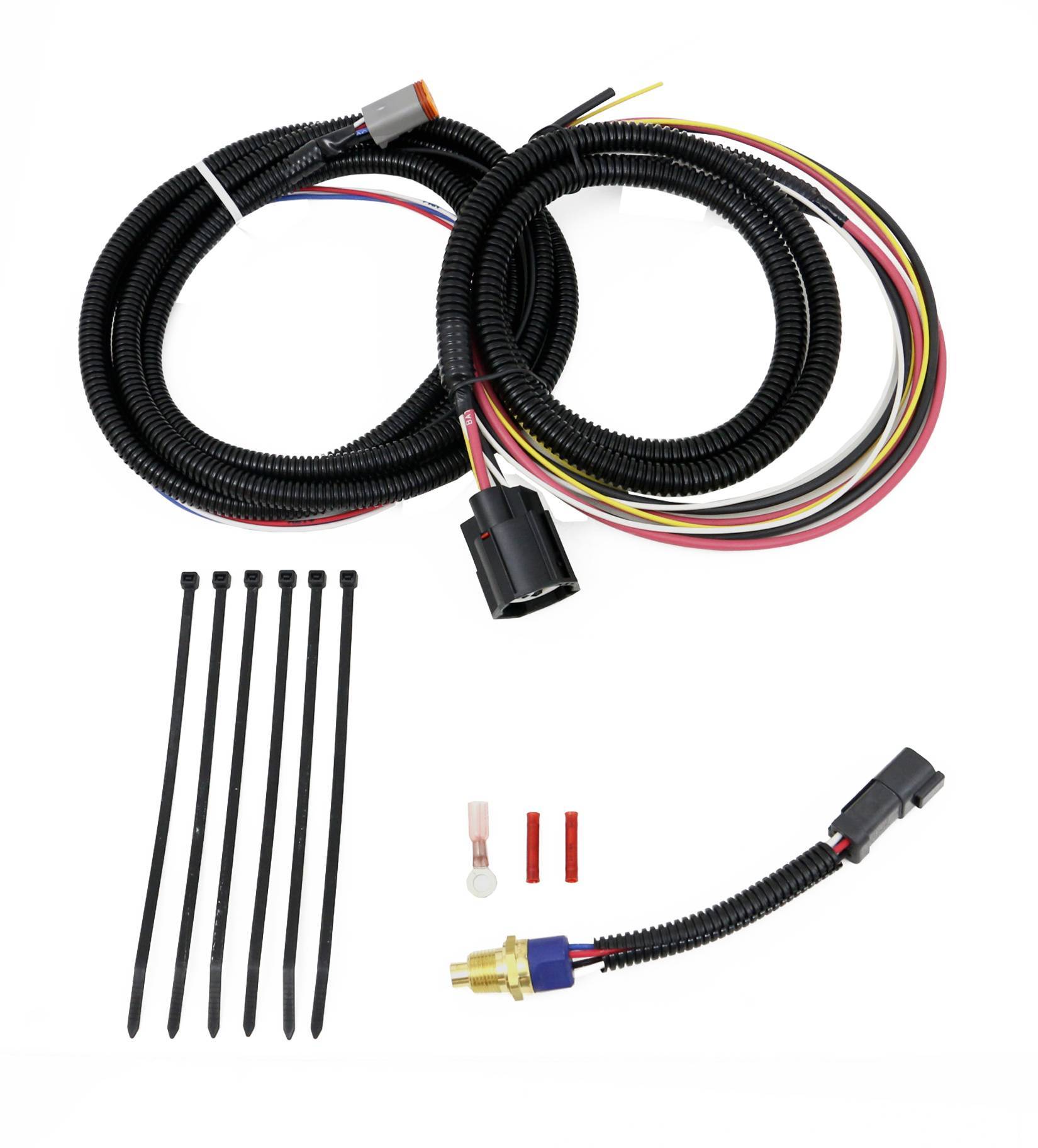

Single Brushless Fan Wiring Kit

- Please Select -

Finish Options

- Finish Options -

Qty:

FREE SHIPPING!!!( Web Orders Only)

Description
Drawings and Diagrams
Details
Shipping
Documents
Reviews

Description

1956-1957 CHEVROLET BEL AIR/ IMPALA W/ BRUSHLESS FANS, INTERCOOLER, CONDENSER, OVERFLOW, SUPER CHARGER RESERVOIR (SUPERCHARGED APPLICATIONS ONLY)

Product Series

1956-1957 Bel-Air/ Nomad (SUPERCHARGED LS SWAP)

1955-1957 Bel-Air/ Nomad (LS SWAP)

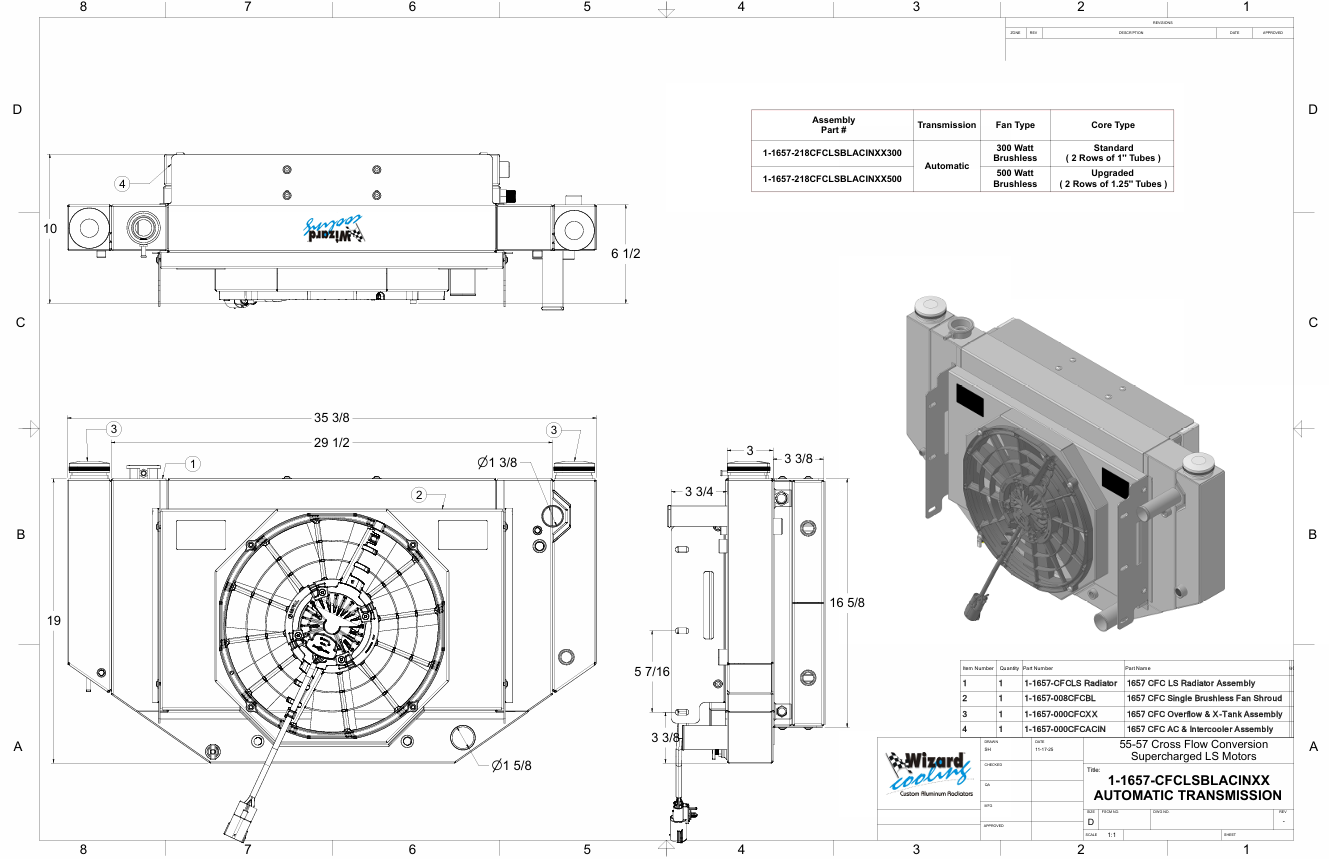

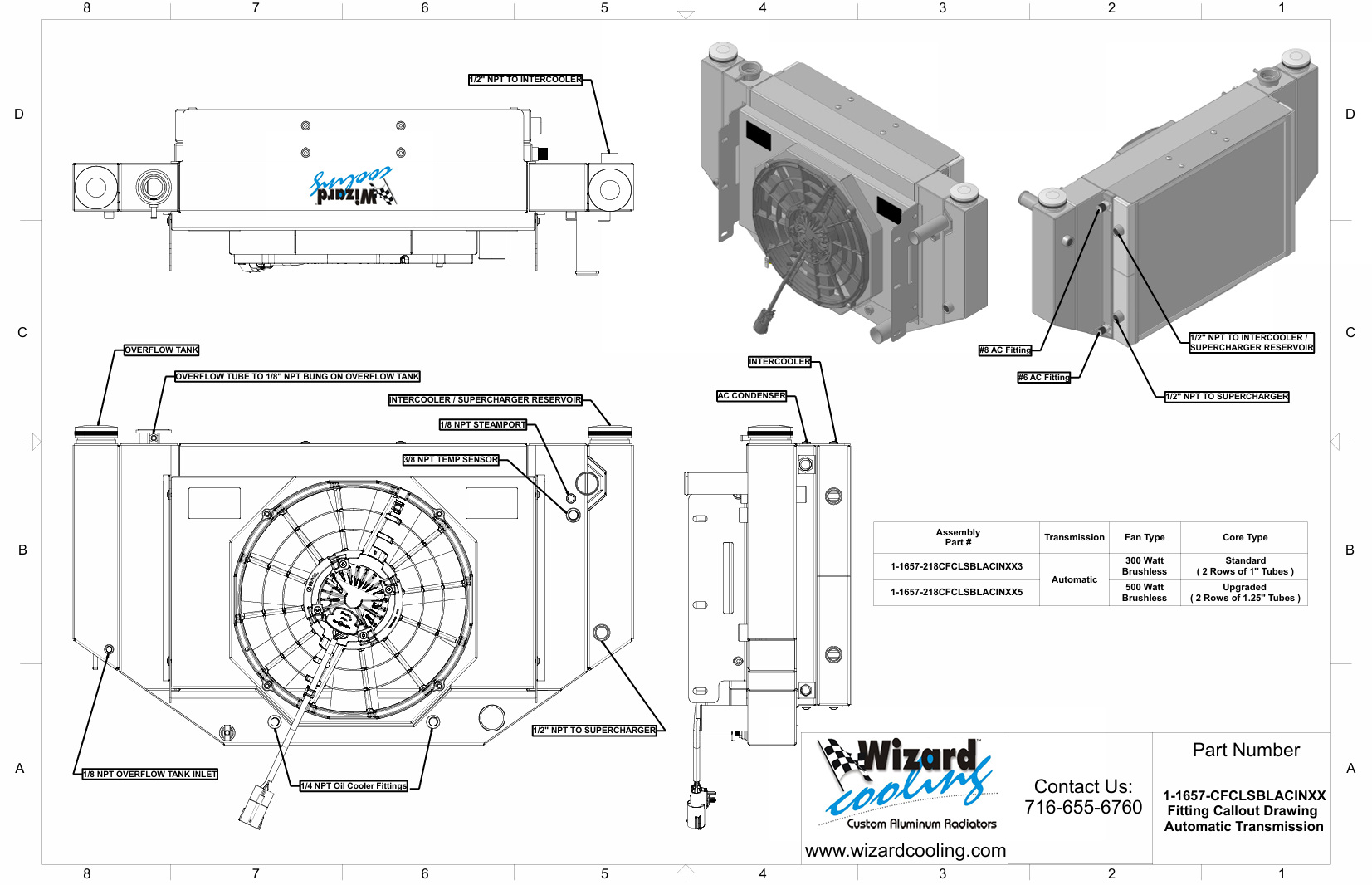

Drawings and Diagrams

1-1657-218CFCLSBLACINXX3

View & Download Diagram

1-1657-218CFCLSBLACINXX3

View & Download Diagram

1-1657-218CFCLSBLACINXX3

View & Download Diagram

Details

SKU: 1-1657-218CFCLSBLACINXX3
Item #: 1-1657-218CFCLSBLACINXX3
Brand: Wizard Cooling Inc
Year Make Model: 1956 Chevrolet Bel Air
Year Make Model: 1956 Chevrolet Nomad
Year Make Model: 1956 Chevrolet One-Fifty Series
Year Make Model: 1956 Chevrolet Sedan Delivery
Year Make Model: 1956 Chevrolet Two-Ten Series
Year Make Model: 1957 Chevrolet Bel Air
Year Make Model: 1957 Chevrolet Nomad
Year Make Model: 1957 Chevrolet One-Fifty Series
Year Make Model: 1957 Chevrolet Sedan Delivery
Year Make Model: 1957 Chevrolet Two-Ten Series
Product Type: Radiator & Fan(s)
Engine: LS Swap
Engine: LS (Supercharged)
Application Nuance: V8 Core Support (Cross Flow Conversion Radiator)
Shroud YES/NO: Yes
Electric Fan YES/NO: Yes
CRITICAL THICKNESS: 3.50 IN (Front of core support to back of fan motor)
THICKNESS OF CORE: 2.75 in (Upgraded High Performance Core)
Core Thickness: 2.75 in (Upgraded High Performance Core)
TRANSMISSION OIL COOLER INCLUDED: Yes
Electric Fan Type: Brushless
Shroud: Yes
MOUNTED AC CONDENSER: Yes
OUTLET LOCATION: Passenger Side
Expansion Tank Included: Yes
INLET LOCATION: Passenger Side
OUTLET HEADER LENGTH: 15.375 IN
OUTLET HEADER WIDTH: 3 IN
Performance Ranking: Absolute Best
AC Condenser Included: Yes
TANK MATERIAL: Aluminum
TUBE INSIDE DIAMETER: 1.25 IN
TRANSMISSION OIL COOLER FITTING DIAMETER: 1/4 NPT
TRANSMISSION OIL COOLER PLATE QUANTITY: 5
TRANSMISSION OIL COOLER TYPE: Plate
NUMBER OF ELECTRIC FANS: 1
CORE MATERIAL: Aluminum
CORE ROW QUANTITY: 2
CORE WIDTH: 22 IN
CUBIC INCHES OF CORE: 930 CuIn
DOWN FLOW OR CROSS FLOW TYPE: Cross Flow
Electric Fans: Yes
FAN DIAMETER: 14 IN
FAN SHROUD and RADIATOR THICKNESS: 6.50 IN
INLET DIAMETER: 1.375 IN
INLET HEADER LENGTH: 15.375 IN
INLET HEADER WIDTH: 3 IN
MOUNTING TYPE: Flange
OUTLET DIAMETER: 1.625 IN
FINISH: Aluminum
CORE HEIGHT: 15.375 IN
SHROUD TYPE: Shroud
PACKAGE: Radiator & Fan Package
Condition: New

Categories

Product Series

1956-1957 Bel-Air/ Nomad (SUPERCHARGED LS SWAP)

1955-1957 Bel-Air/ Nomad (LS SWAP)

Shipping Information

Requires Shipping: Item Requires Shipping
Weight: 55.0 lbs.
Package Dimensions: W35.0000” x H26.0000” x L14.0000”
Shipping: FREE SHIPPING!!!( Web Orders Only)
Shipping Note: This item ships in its own box.
